VC Serie
Tapas redondas de vinilo

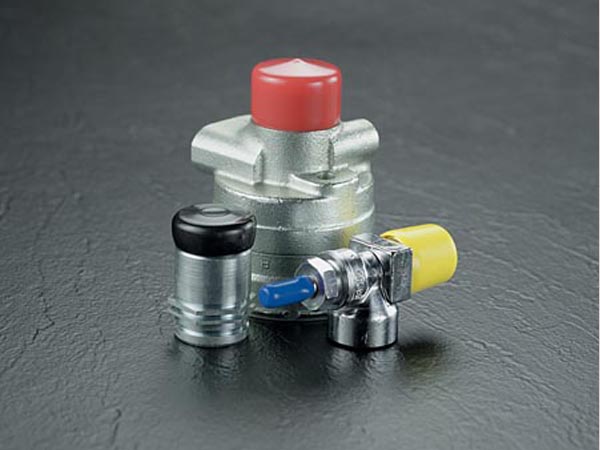

Las tapas de la Serie VC son cierres de protección extremadamente flexibles y durables, ideales para usar como protectores de roscas, sellos contra el polvo y la humedad, y codificación por colores de extremos de caños y montantes, y para enmascaramiento durante las operaciones de pintado o enchapado.
- Amplia variedad de tamaños
- Fáciles de usar
- Amplio rango de colores disponible
Material: Vinilo
Color estándar: Negro
Color opcional: Blanco, marrón, naranja, verde, gris, azul, rojo, amarillo
Advertencia de la Propuesta 65 de California
*La Serie VC está disponible en nuestro material Flex500 para alta temperatura. Visite la Serie HVC para obtener más información.
Nota: La Serie VC está disponible en otros largos; llame al +1 800.880.4539 para obtener más información. Los tamaños de micropaquete tienen un tiempo de entrega de 3 días

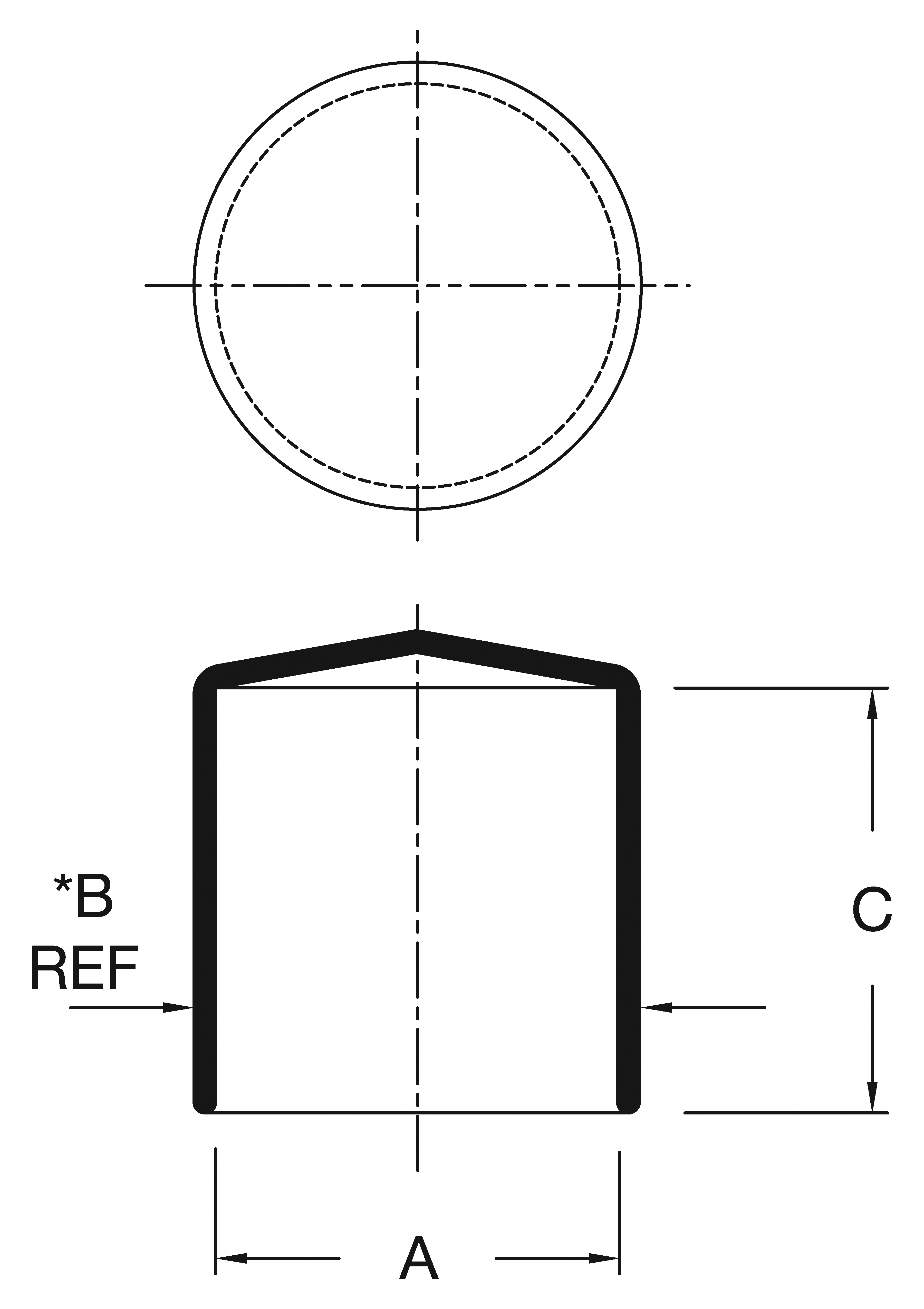

N.° de artículo | Dim A (pulg.) | Dim B REF (pulg.) | Dim C (pulg.) | |
---|---|---|---|---|
VC-054-10 | 0.054 | 0.09 | 0.625 | |
VC-062-10 | 0.062 | 0.12 | 0.625 | |
VC-072-10 | 0.072 | 0.13 | 0.625 | |
VC-080-10 | 0.080 | 0.14 | 0.625 | |
VC-093-12 | 0.093 | 0.15 | 0.750 | |
VC-109-12 | 0.109 | 0.18 | 0.750 | |
VC-125-8 | 0.125 | 0.20 | 0.500 | |
VC-125-16 | 0.125 | 0.20 | 1.000 | |
VC-140-8 | 0.140 | 0.21 | 0.500 | |
VC-140-16 | 0.140 | 0.21 | 1.000 | |
VC-148-8 | 0.148 | 0.24 | 0.500 | |
VC-148-16 | 0.148 | 0.24 | 1.000 | |
VC-156-8 | 0.156 | 0.24 | 0.500 | |
VC-156-16 | 0.156 | 0.24 | 1.000 | |
VC-161-8 | 0.161 | 0.24 | 0.500 | |
VC-161-16 | 0.161 | 0.24 | 1.000 | |
VC-172-8 | 0.172 | 0.25 | 0.500 | |
VC-172-16 | 0.172 | 0.25 | 1.000 | |
VC-180-8 | 0.180 | 0.26 | 0.500 | |
VC-180-16 | 0.180 | 0.26 | 1.000 | |
VC-187-8 | 0.187 | 0.27 | 0.500 | |
VC-187-16 | 0.187 | 0.27 | 1.000 | |
VC-187-24 | 0.187 | 0.27 | 1.500 | |
VC-203-8 | 0.203 | 0.29 | 0.500 | |
VC-203-16 | 0.203 | 0.29 | 1.000 | |
VC-218-8 | 0.218 | 0.31 | 0.500 | |
VC-218-16 | 0.218 | 0.31 | 1.000 | |
VC-224-8 | 0.224 | 0.31 | 0.500 | |
VC-224-16 | 0.224 | 0.31 | 1.000 | |
VC-234-8 | 0.234 | 0.32 | 0.500 | |
VC-234-16 | 0.234 | 0.32 | 1.000 | |
VC-240-8 | 0.240 | 0.33 | 0.500 | |
VC-240-16 | 0.240 | 0.33 | 1.000 | |
VC-250-8 | 0.250 | 0.35 | 0.500 | |
VC-250-16 | 0.250 | 0.35 | 1.000 | |
VC-270-10 | 0.270 | 0.37 | 0.625 | |
VC-281-8 | 0.281 | 0.38 | 0.500 | |
VC-281-16 | 0.281 | 0.38 | 1.000 | |
VC-290-8 | 0.290 | 0.40 | 0.500 | |
VC-290-16 | 0.290 | 0.40 | 1.000 | |
VC-304-8 | 0.304 | 0.41 | 0.500 | |
VC-304-16 | 0.304 | 0.41 | 1.000 | |
VC-312-8 | 0.312 | 0.42 | 0.500 | |
VC-312-16 | 0.312 | 0.42 | 1.000 | |
VC-312-24 | 0.312 | 0.43 | 1.500 | |
VC-343-8 | 0.343 | 0.45 | 0.500 | |
VC-343-16 | 0.343 | 0.45 | 1.000 | |
VC-375-8 | 0.375 | 0.50 | 0.500 | |
VC-375-16 | 0.375 | 0.50 | 1.000 | |
VC-406-8 | 0.406 | 0.53 | 0.500 | |
VC-406-16 | 0.406 | 0.53 | 1.000 | |
VC-437-8 | 0.437 | 0.56 | 0.500 | |
VC-437-16 | 0.437 | 0.56 | 1.000 | |
VC-460-8 | 0.460 | 0.58 | 0.500 | |
VC-460-16 | 0.460 | 0.58 | 1.000 | |
VC-467-8 | 0.467 | 0.58 | 0.500 | |
VC-467-16 | 0.467 | 0.58 | 1.000 | |
VC-485-16 | 0.485 | 0.55 | 1.000 | |
VC-490-8 | 0.490 | 0.61 | 0.500 | |
VC-490-16 | 0.490 | 0.61 | 1.000 | |
VC-500-8 | 0.500 | 0.62 | 0.500 | |
VC-500-16 | 0.500 | 0.62 | 1.000 | |
VC-531-8 | 0.531 | 0.65 | 0.500 | |
VC-531-16 | 0.531 | 0.65 | 1.000 | |
VC-562-8 | 0.562 | 0.69 | 0.500 | |
VC-562-16 | 0.562 | 0.69 | 1.000 | |
VC-600-8 | 0.600 | 0.73 | 0.500 | |
VC-600-16 | 0.600 | 0.73 | 1.000 | |
VC-610-8 | 0.610 | 0.67 | 0.500 | |
VC-610-16 | 0.610 | 0.74 | 1.000 | |
VC-625-8 | 0.625 | 0.76 | 0.500 | |
VC-625-16 | 0.625 | 0.76 | 1.000 | |
VC-625-24 | 0.625 | 0.77 | 1.500 | |
VC-640-8 | 0.640 | 0.77 | 0.500 | |
VC-640-16 | 0.640 | 0.77 | 1.000 | |
VC-665-8 | 0.665 | 0.80 | 0.500 | |
VC-665-16 | 0.665 | 0.80 | 1.000 | |
VC-687-8 | 0.687 | 0.81 | 0.500 | |
VC-687-16 | 0.687 | 0.81 | 1.000 | |
VC-690-8 | 0.690 | 0.82 | 0.500 | |
VC-690-16 | 0.690 | 0.82 | 1.000 | |
VC-725-8 | 0.725 | 0.86 | 0.500 | |
VC-725-16 | 0.725 | 0.86 | 1.000 | |
VC-750-8 | 0.750 | 0.88 | 0.500 | |
VC-750-16 | 0.750 | 0.88 | 1.000 | |
VC-812-8 | 0.812 | 0.94 | 0.500 | |
VC-812-16 | 0.812 | 0.94 | 1.000 | |
VC-812-24 | 0.812 | 0.95 | 1.500 | |
VC-825-8 | 0.825 | 0.96 | 0.500 | |
VC-825-16 | 0.825 | 0.96 | 1.000 | |
VC-843-8 | 0.843 | 0.98 | 0.500 | |
VC-843-16 | 0.843 | 0.98 | 1.000 | |
VC-870-8 | 0.870 | 1.01 | 0.500 | |
VC-870-16 | 0.870 | 1.01 | 1.000 | |
VC-875-8 | 0.875 | 1.02 | 0.500 | |
VC-875-16 | 0.875 | 1.02 | 1.000 | |
VC-875-24 | 0.875 | 1.02 | 1.500 | |
VC-937-8 | 0.937 | 1.08 | 0.500 | |
VC-937-16 | 0.937 | 1.08 | 1.000 | |
VC-985-8 | 0.985 | 1.13 | 0.500 | |
VC-985-16 | 0.985 | 1.13 | 1.000 | |
VC-1000-8 | 1.000 | 1.14 | 0.500 | |
VC-1000-16 | 1.000 | 1.14 | 1.000 | |
VC-1000-24 | 1.000 | 1.14 | 1.500 | |
VC-1062-16 | 1.062 | 1.20 | 1.000 | |
VC-1090-16 | 1.090 | 1.22 | 1.000 | |
VC-1125-16 | 1.125 | 1.27 | 1.000 | |
VC-1187-16 | 1.187 | 1.33 | 1.000 | |
VC-1250-16 | 1.250 | 1.39 | 1.000 | |
VC-1250-24 | 1.250 | 1.39 | 1.500 | |
VC-1312-16 | 1.312 | 1.45 | 1.000 | |
VC-1312-24 | 1.312 | 1.45 | 1.500 | |
VC-1375-16 | 1.375 | 1.52 | 1.000 | |
VC-1375-24 | 1.375 | 1.52 | 1.500 | |
VC-1437-16 | 1.437 | 1.58 | 1.000 | |
VC-1500-16 | 1.500 | 1.64 | 1.000 | |
VC-1500-24 | 1.500 | 1.64 | 1.500 | |
VC-1593-16 | 1.593 | 1.72 | 1.000 | |
VC-1625-16 | 1.625 | 1.77 | 1.000 | |
VC-1687-16 | 1.687 | 1.83 | 1.000 | |
VC-1750-16 | 1.750 | 1.89 | 1.000 | |
VC-1812-16 | 1.812 | 1.95 | 1.000 | |
VC-1875-16 | 1.875 | 2.02 | 1.000 | |
VC-1937-16 | 1.937 | 2.07 | 1.000 | |
VC-2000-16 | 2.000 | 2.14 | 1.000 | |
VC-2000-24 | 2.000 | 2.14 | 1.500 | |
VC-2125-16 | 2.125 | 2.27 | 1.000 | |
VC-2156-16 | 2.156 | 2.30 | 1.000 | |
VC-2250-16 | 2.250 | 2.40 | 1.000 | |
VC-2250-24 | 2.250 | 2.40 | 1.500 | |
VC-2375-16 | 2.375 | 2.52 | 1.000 | |
VC-2375-24 | 2.375 | 2.52 | 1.500 | |
VC-2460-16 | 2.460 | 2.61 | 1.000 | |
VC-2500-16 | 2.500 | 2.65 | 1.000 | |
VC-2500-24 | 2.500 | 2.65 | 1.500 | |
VC-2625-16 | 2.625 | 2.77 | 1.000 | |
VC-2625-24 | 2.625 | 2.77 | 1.500 | |
VC-2687-16 | 2.687 | 2.84 | 1.000 | |
VC-2750-16 | 2.750 | 2.91 | 1.000 | |
VC-2750-24 | 2.750 | 2.91 | 1.500 | |
VC-2875-16 | 2.875 | 3.03 | 1.000 | |
VC-3000-16 | 3.000 | 3.16 | 1.000 | |
VC-3000-24 | 3.000 | 3.16 | 1.500 | |
VC-3125-16 | 3.125 | 3.28 | 1.000 | |
VC-3125-24 | 3.125 | 3.28 | 1.500 | |
VC-3250-18 | 3.250 | 3.41 | 1.125 | |
VC-3375-18 | 3.375 | 3.53 | 1.125 | |
VC-3500-18 | 3.500 | 3.66 | 1.125 | |
VC-3500-24 | 3.500 | 3.66 | 1.500 | |
VC-3625-18 | 3.625 | 3.78 | 1.125 | |
VC-3750-18 | 3.750 | 3.91 | 1.125 | |
VC-3875-18 | 3.875 | 4.03 | 1.125 | |
VC-4000-20 | 4.000 | 4.16 | 1.250 | |
VC-4125-20 | 4.125 | 4.28 | 1.250 | |
VC-4187-20 | 4.187 | 4.34 | 1.250 | |
VC-4250-20 | 4.250 | 4.41 | 1.250 | |
VC-4375-20 | 4.375 | 4.53 | 1.250 | |
VC-4500-20 | 4.500 | 4.66 | 1.250 | |
VC-4625-8 | 4.625 | 4.80 | 0.500 | |
VC-4625-16 | 4.625 | 4.80 | 1.000 | |
VC-4750-20 | 4.750 | 4.91 | 1.250 | |
VC-4813-32 | 4.813 | 4.99 | 2.000 | |
VC-4875-32 | 4.875 | 5.04 | 2.000 | |
VC-5000-22 | 5.000 | 5.18 | 1.375 | |
VC-5187-22 | 5.187 | 5.36 | 1.375 | |
VC-5250-16 | 5.250 | 5.40 | 1.000 | |
VC-5375-22 | 5.375 | 5.55 | 1.375 | |
VC-5500-22 | 5.500 | 5.68 | 1.375 | |
VC-5625-32 | 5.625 | 5.81 | 2.000 | |
VC-5750-22 | 5.750 | 5.93 | 1.375 | |
VC-6000-24 | 6.000 | 6.18 | 1.500 | |
VC-6125-32 | 6.125 | 6.31 | 2.000 | |
VC-6250-24 | 6.250 | 6.43 | 1.500 | |
VC-6500-24 | 6.500 | 6.68 | 1.500 | |
VC-6750-24 | 6.750 | 6.93 | 1.500 | |
VC-6875-32 | 6.875 | 7.06 | 2.000 | |
VC-7000-24 | 7.000 | 7.18 | 1.500 | |
VC-7250-24 | 7.250 | 7.43 | 1.500 | |
VC-7375-32 | 7.375 | 7.56 | 2.000 | |
VC-7500-24 | 7.500 | 7.68 | 1.500 | |
VC-7750-28 | 7.750 | 7.93 | 1.750 | |
VC-8000-28 | 8.000 | 8.18 | 1.750 | |
VC-8250-16 | 8.250 | 8.40 | 1.000 | |
VC-8250-24 | 8.250 | 8.40 | 1.500 | |
VC-8500-28 | 8.500 | 8.68 | 1.750 | |
VC-8750-28 | 8.750 | 8.93 | 1.750 | |
VC-9000-28 | 9.000 | 9.20 | 1.750 | |
VC-9250-28 | 9.250 | 9.45 | 1.750 | |
VC-9375-28 | 9.375 | 9.57 | 1.750 | |
VC-9500-28 | 9.500 | 9.70 | 1.750 | |
VC-9625-28 | 9.625 | 9.82 | 1.750 | |
VC-9875-28 | 9.875 | 10.07 | 1.750 | |
VC-10000-32 | 10.000 | 10.20 | 2.000 | |
VC-10312-32 | 10.312 | 10.51 | 2.000 | |
VC-10750-32 | 10.750 | 10.95 | 2.000 | |
VC-11000-32 | 11.000 | 11.20 | 2.000 | |
VC-11375-32 | 11.375 | 11.57 | 2.000 | |
VC-11750-32 | 11.750 | 11.95 | 2.000 | |
VC-12000-32 | 12.000 | 12.20 | 2.000 | |
VC-12250-32 | 12.250 | 12.45 | 2.000 | |
VC-12500-32 | 12.500 | 12.70 | 2.000 | |
VC-12625-32 | 12.625 | 12.82 | 2.000 | |
VC-12875-32 | 12.875 | 13.07 | 2.000 | |
VC-13250-32 | 13.250 | 13.47 | 2.000 | |
VC-13500-32 | 13.500 | 13.72 | 2.000 | |
VC-13600-32 | 13.600 | 13.82 | 2.000 | |
VC-14000-32 | 14.000 | 14.22 | 2.000 | |
VC-14250-32 | 14.250 | 14.47 | 2.000 | |
VC-14500-32 | 14.500 | 14.72 | 2.000 | |
VC-15000-32 | 15.000 | 15.22 | 2.000 | |
VC-15625-32 | 15.620 | 15.84 | 2.000 | |
VC-15875-32 | 15.875 | 16.11 | 2.000 | |
VC-16000-32 | 16.000 | 16.24 | 2.000 | |
VC-16500-32 | 16.500 | 16.74 | 2.000 | |
VC-17375-40 | 17.375 | 17.61 | 2.500 | |
VC-18000-40 | 18.000 | 18.24 | 2.500 | |
VC-19000-40 | 19.000 | 19.24 | 2.500 | |
VC-20000-40 | 20.000 | 20.24 | 2.500 | |
VC-21000-40 | 21.000 | 21.24 | 2.500 | |
VC-21250-40 | 21.250 | 21.80 | 2.5 | |
VC-22000-48 | 22.000 | 22.80 | 3.000 | |
VC-22000-64 | 22.000 | 22.80 | 4.000 | |
VC-24000-48 | 24.000 | 24.24 | 3.000 | |
MC-10001 WHT | ||||
VC-3125-8 | ||||
VC-3625-8 | ||||
VC-5187-8 | ||||
