FAN Serie
Protectores para bridas con orificios correspondientes para pernos

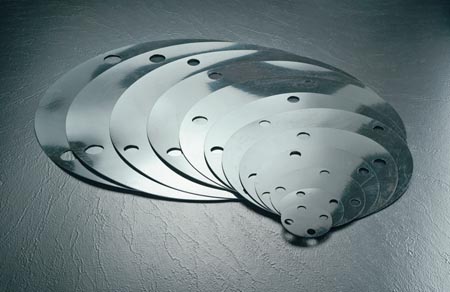

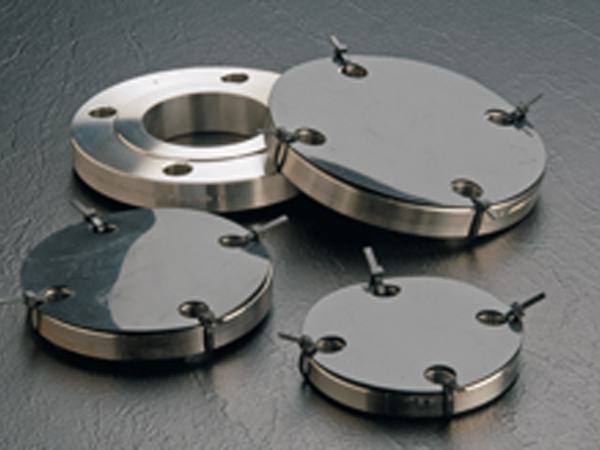

Las cubiertas de la Serie FAN protegen de forma segura la cara completa de cualquier brida ANSI B-16.5 y ANSI B-16.47 y superficies de sellado con el uso de tapones adicionales (Serie FBH) o precintos para cables (Serie CAB) a través de los orificios para pernos.
Material: Polietileno de alta densidad
Color estándar: Negro (-CP indica la alternativa de vinilo blanco)
| N.° de artículo | Para ajustarse al tamaño nominal del caño | Clasificación de clase de presión | Dim A (pulg.) | Dim B (pulg.) | Dim C (pulg.) | Matching Bolt Hole Plug | |
|---|---|---|---|---|---|---|---|
| FAN-150-1/2 | 1/2 | 150 | 3.50 | 2.38 | 0.68 | FBH-625 | |
| FAN-150-3/4 | 3/4 | 150 | 3.88 | 2.75 | 0.68 | FBH-625 | |
| FAN-150-1 | 1 | 150 | 4.25 | 3.12 | 0.68 | FBH-625 | |
| FAN-150-1 1/4 | 1-1/4 | 150 | 4.62 | 3.50 | 0.68 | FBH-625 | |
| FAN-150-1 1/2 | 1-1/2 | 150 | 5.00 | 3.88 | 0.68 | FBH-625 | |
| FAN-150-2 | 2 | 150 | 6.00 | 4.75 | 0.68 | FBH-625 | |
| FAN-150-2 1/2 | 2-1/2 | 150 | 7.00 | 5.50 | 0.81 | FBH-750 | |
| FAN-150-3 | 3 | 150 | 7.50 | 6.00 | 0.81 | FBH-750 | |
| FAN-150-3 1/2 | 3-1/2 | 150 | 8.50 | 7.00 | 0.81 | FBH-750 | |
| FAN-150-4 | 4 | 150 | 9.00 | 7.50 | 0.81 | FBH-750 | |
| FAN-150-5 | 5 | 150 | 10.00 | 8.50 | 0.94 | FBH-875 | |
| FAN-150-6 | 6 | 150 | 11.00 | 9.50 | 0.94 | FBH-875 | |
| FAN-150-8 | 8 | 150 | 13.50 | 11.75 | 0.94 | FBH-875 | |
| FAN-150-10 | 10 | 150 | 16.00 | 14.25 | 1.06 | FBH-1000 | |
| FAN-150-12 | 12 | 150 | 19.00 | 17.00 | 1.06 | FBH-1000 | |
| FAN-150-14 | 14 | 150 | 21.00 | 18.75 | 1.18 | FBH-1125 | |
| FAN-150-16 | 16 | 150 | 23.50 | 21.25 | 1.18 | FBH-1125 | |
| FAN-150-18 | 18 | 150 | 25.00 | 22.75 | 1.31 | FBH-1250 | |
| FAN-150-20 | 20 | 150 | 27.50 | 25.00 | 1.31 | FBH-1250 | |
| FAN-150-22 | 22 | 150 | 29.50 | 27.25 | 1.44 | FBH-1375 | |
| FAN-150-24 | 24 | 150 | 32.00 | 29.50 | 1.44 | FBH-1375 | |
| FAN-150-26A | 26 | 150 | 34.25 | 31.75 | 1.44 | FBH-1375 | |
| FAN-150-26B | 26 | 150 | 30.94 | 29.31 | 0.94 | FBH-875 | |
| FAN-150-28A | 28 | 150 | 36.50 | 34.00 | 1.44 | FBH-1375 | |
| FAN-150-28B | 28 | 150 | 32.94 | 31.31 | 0.94 | FBH-875 | |
| FAN-150-30A | 30 | 150 | 38.75 | 36.00 | 1.44 | FBH-1375 | |
| FAN-150-30B | 30 | 150 | 34.94 | 33.31 | 0.94 | FBH-875 | |
| FAN-150-32A | 32 | 150 | 41.75 | 38.50 | 1.68 | FBH-1625 | |
| FAN-150-32B | 32 | 150 | 37.06 | 35.44 | 0.94 | FBH-875 | |
| FAN-150-34A | 34 | 150 | 43.75 | 40.50 | 1.68 | FBH-1625 | |
| FAN-150-34B | 34 | 150 | 39.56 | 37.69 | 1.06 | FBH-1000 | |
| FAN-150-36A | 36 | 150 | 46.00 | 42.75 | 1.68 | FBH-1625 | |
| FAN-150-36B | 36 | 150 | 41.62 | 39.75 | 1.06 | FBH-1000 | |
| FAN-150-38A | 38 | 150 | 48.75 | 45.25 | 1.68 | FBH-1625 | |
| FAN-150-38B | 38 | 150 | 44.25 | 42.12 | 1.18 | FBH-1125 | |
| FAN-150-40A | 40 | 150 | 50.75 | 47.25 | 1.68 | FBH-1625 | |
| FAN-150-40B | 40 | 150 | 46.25 | 44.12 | 1.18 | FBH-1125 | |
| FAN-150-42A | 42 | 150 | 53.00 | 49.50 | 1.68 | FBH-1625 | |
| FAN-150-42B | 42 | 150 | 48.25 | 46.12 | 1.18 | FBH-1125 | |
| FAN-150-44A | 44 | 150 | 55.25 | 51.75 | 1.68 | FBH-1625 | |
| FAN-150-44B | 44 | 150 | 50.25 | 48.12 | 1.18 | FBH-1125 | |
| FAN-150-46A | 46 | 150 | 57.25 | 53.75 | 1.68 | FBH-1625 | |
| FAN-150-46B | 46 | 150 | 52.81 | 50.56 | 1.31 | FBH-1250 | |
| FAN-150-48A | 48 | 150 | 59.50 | 56.00 | 1.68 | FBH-1625 | |
| FAN-150-48B | 48 | 150 | 54.81 | 52.56 | 1.31 | FBH-1250 | |
| FAN-300-1/2 | 1/2 | 300 | 3.75 | 2.62 | 0.68 | FBH-625 | |
| FAN-300-3/4 | 3/4 | 300 | 4.62 | 3.25 | 0.81 | FBH-750 | |
| FAN-300-1 | 1 | 300 | 4.88 | 3.50 | 0.81 | FBH-750 | |
| FAN-300-1 1/4 | 1-1/4 | 300 | 5.25 | 3.88 | 0.81 | FBH-750 | |
| FAN-300-1 1/2 | 1-1/2 | 300 | 6.12 | 4.50 | 0.94 | FBH-875 | |
| FAN-300-2 | 2 | 300 | 6.50 | 5.00 | 0.81 | FBH-750 | |
| FAN-300-2 1/2 | 2-1/2 | 300 | 7.50 | 5.88 | 0.94 | FBH-875 | |
| FAN-300-3 | 3 | 300 | 8.25 | 6.62 | 0.94 | FBH-875 | |
| FAN-300-3 1/2 | 3-1/2 | 300 | 9.00 | 7.25 | 0.94 | FBH-875 | |
| FAN-300-4 | 4 | 300 | 10.00 | 7.88 | 0.94 | FBH-875 | |
| FAN-300-5 | 5 | 300 | 11.00 | 9.25 | 0.94 | FBH-875 | |
| FAN-300-6 | 6 | 300 | 12.50 | 10.62 | 0.94 | FBH-875 | |
| FAN-300-8 | 8 | 300 | 15.00 | 13.00 | 1.06 | FBH-1000 | |
| FAN-300-10 | 10 | 300 | 17.50 | 15.25 | 1.18 | FBH-1125 | |
| FAN-300-12 | 12 | 300 | 20.50 | 17.75 | 1.31 | FBH-1250 | |
| FAN-300-14 | 14 | 300 | 23.00 | 20.25 | 1.31 | FBH-1250 | |
| FAN-300-16 | 16 | 300 | 25.50 | 22.50 | 1.44 | FBH-1375 | |
| FAN-300-18 | 18 | 300 | 28.00 | 24.75 | 1.44 | FBH-1375 | |
| FAN-300-20 | 20 | 300 | 30.50 | 27.00 | 1.44 | FBH-1375 | |
| FAN-300-22 | 22 | 300 | 33.00 | 29.25 | 1.68 | FBH-1625 | |
| FAN-300-24 | 24 | 300 | 36.00 | 32.00 | 1.68 | FBH-1625 | |
| FAN-300-26A | 26 | 300 | 38.25 | 34.50 | 1.81 | FBH-1750 | |
| FAN-300-26B | 26 | 300 | 34.12 | 31.62 | 1.44 | FBH-1375 | |
| FAN-300-28A | 28 | 300 | 40.75 | 37.00 | 1.81 | FBH-1750 | |
| FAN-300-28B | 28 | 300 | 36.25 | 33.75 | 1.44 | FBH-1375 | |
| FAN-300-30A | 30 | 300 | 43.00 | 39.25 | 1.94 | FBH-1875 | |
| FAN-300-30B | 30 | 300 | 39.00 | 36.25 | 1.56 | FBH-1500 | |
| FAN-300-32A | 32 | 300 | 45.25 | 41.50 | 2.06 | FBH-2000 | |
| FAN-300-32B | 32 | 300 | 41.50 | 38.50 | 1.68 | FBH-1625 | |
| FAN-300-34A | 34 | 300 | 47.50 | 43.50 | 2.06 | FBH-2000 | |
| FAN-300-34B | 34 | 300 | 43.62 | 40.62 | 1.68 | FBH-1625 | |
| FAN-300-36A | 36 | 300 | 50.00 | 46.00 | 2.18 | FBH-2125 | |
| FAN-300-36B | 36 | 300 | 46.12 | 42.88 | 1.81 | FBH-1750 | |
| FAN-300-38A | 38 | 300 | 46.00 | 43.00 | 1.68 | FBH-1625 | |
| FAN-300-38B | 38 | 300 | 48.12 | 44.88 | 1.81 | FBH-1750 | |
| FAN-300-40A | 40 | 300 | 48.75 | 45.50 | 1.81 | FBH-1750 | |
| FAN-300-40B | 40 | 300 | 50.12 | 46.88 | 1.81 | FBH-1750 | |
| FAN-300-42A | 42 | 300 | 50.75 | 47.50 | 1.81 | FBH-1750 | |
| FAN-300-42B | 42 | 300 | 52.50 | 49.00 | 1.94 | FBH-1875 | |
| FAN-300-44A | 44 | 300 | 53.25 | 49.75 | 1.94 | FBH-1875 | |
| FAN-300-44B | 44 | 300 | 54.50 | 51.00 | 1.94 | FBH-1875 | |
| FAN-300-46A | 46 | 300 | 55.75 | 52.00 | 2.06 | FBH-2000 | |
| FAN-300-46B | 46 | 300 | 57.50 | 53.75 | 2.06 | FBH-2000 | |
| FAN-300-48A | 48 | 300 | 57.75 | 54.00 | 2.06 | FBH-2000 | |
| FAN-300-48B | 48 | 300 | 59.50 | 55.75 | 2.06 | FBH-2000 | |
| FAN-400-1/2 | 1/2 | 400 | 3.75 | 2.62 | 0.68 | FBH-625 | |
| FAN-400-3/4 | 3/4 | 400 | 4.62 | 3.25 | 0.81 | FBH-750 | |
| FAN-400-1 | 1 | 400 | 4.88 | 3.50 | 0.81 | FBH-750 | |
| FAN-400-1 1/4 | 1-1/4 | 400 | 5.25 | 3.88 | 0.81 | FBH-750 | |
| FAN-400-1 1/2 | 1-1/2 | 400 | 6.12 | 4.50 | 0.94 | FBH-875 | |
| FAN-400-2 | 2 | 400 | 6.50 | 5.00 | 0.81 | FBH-750 | |
| FAN-400-2 1/2 | 2-1/2 | 400 | 7.50 | 5.88 | 0.94 | FBH-875 | |
| FAN-400-3 | 3 | 400 | 8.25 | 6.62 | 0.94 | FBH-875 | |
| FAN-400-3 1/2 | 3-1/2 | 400 | 9.00 | 7.25 | 1.06 | FBH-1000 | |
| FAN-400-4 | 4 | 400 | 10.00 | 7.88 | 1.06 | FBH-1000 | |
| FAN-400-5 | 5 | 400 | 11.00 | 9.25 | 1.06 | FBH-1000 | |
| FAN-400-6 | 6 | 400 | 12.50 | 10.62 | 1.06 | FBH-1000 | |
| FAN-400-8 | 8 | 400 | 15.00 | 13.00 | 1.18 | FBH-1125 | |
| FAN-400-10 | 10 | 400 | 17.50 | 15.25 | 1.31 | FBH-1250 | |
| FAN-400-12 | 12 | 400 | 20.50 | 17.75 | 1.44 | FBH-1375 | |
| FAN-400-14 | 14 | 400 | 23.00 | 20.25 | 1.44 | FBH-1375 | |
| FAN-400-16 | 16 | 400 | 25.50 | 22.50 | 1.56 | FBH-1500 | |
| FAN-400-18 | 18 | 400 | 28.00 | 24.75 | 1.56 | FBH-1500 | |
| FAN-400-20 | 20 | 400 | 30.50 | 27.00 | 1.68 | FBH-1625 | |
| FAN-400-22 | 22 | 400 | 33.00 | 29.25 | 1.81 | FBH-1750 | |
| FAN-400-24 | 24 | 400 | 36.00 | 32.00 | 1.94 | FBH-1875 | |
| FAN-400-26A | 26 | 400 | 38.25 | 34.50 | 1.94 | FBH-1875 | |
| FAN-400-26B | 26 | 400 | 33.50 | 30.75 | 1.56 | FBH-1500 | |
| FAN-400-28A | 28 | 400 | 40.75 | 37.00 | 2.06 | FBH-2000 | |
| FAN-400-28B | 28 | 400 | 36.00 | 33.00 | 1.68 | FBH-1625 | |
| FAN-400-30A | 30 | 400 | 43.00 | 39.25 | 2.18 | FBH-2125 | |
| FAN-400-30B | 30 | 400 | 38.25 | 35.25 | 1.68 | FBH-1625 | |
| FAN-400-32A | 32 | 400 | 45.25 | 41.50 | 2.18 | FBH-2125 | |
| FAN-400-32B | 32 | 400 | 40.75 | 37.50 | 1.81 | FBH-1750 | |
| FAN-400-34A | 34 | 400 | 47.50 | 43.50 | 2.18 | FBH-2125 | |
| FAN-400-34B | 34 | 400 | 42.75 | 39.50 | 1.81 | FBH-1750 | |
| FAN-400-36A | 36 | 400 | 50.00 | 46.00 | 2.18 | FBH-2125 | |
| FAN-400-36B | 36 | 400 | 45.50 | 42.00 | 1.94 | FBH-1875 | |
| FAN-400-38A | 38 | 400 | 47.50 | 44.00 | 1.94 | FBH-1875 | |
| FAN-400-38B | 38 | 400 | 47.50 | 44.00 | 1.94 | FBH-1875 | |
| FAN-400-40A | 40 | 400 | 50.00 | 46.25 | 2.06 | FBH-2000 | |
| FAN-400-40B | 40 | 400 | 50.00 | 46.25 | 2.06 | FBH-2000 | |
| FAN-400-42A | 42 | 400 | 52.00 | 48.25 | 2.06 | FBH-2000 | |
| FAN-400-42B | 42 | 400 | 52.00 | 48.25 | 2.06 | FBH-2000 | |
| FAN-400-44A | 44 | 400 | 54.50 | 50.50 | 2.18 | FBH-2125 | |
| FAN-400-44B | 44 | 400 | 54.50 | 50.50 | 2.18 | FBH-2125 | |
| FAN-400-46A | 46 | 400 | 56.75 | 52.75 | 2.18 | FBH-2125 | |
| FAN-400-46B | 46 | 400 | 56.75 | 52.75 | 2.18 | FBH-2125 | |
| FAN-400-48A | 48 | 400 | 59.50 | 55.25 | 2.44 | FBH-2375 | |
| FAN-400-48B | 48 | 400 | 59.50 | 55.25 | 2.44 | FBH-2375 | |
| FAN-600-1/2 | 1/2 | 600 | 3.75 | 2.62 | 0.68 | FBH-625 | |
| FAN-600-3/4 | 3/4 | 600 | 4.62 | 3.25 | 0.81 | FBH-750 | |
| FAN-600-1 | 1 | 600 | 4.88 | 3.50 | 0.81 | FBH-750 | |
| FAN-600-1 1/4 | 1-1/4 | 600 | 5.25 | 3.88 | 0.81 | FBH-750 | |
| FAN-600-1 1/2 | 1-1/2 | 600 | 6.12 | 4.50 | 0.94 | FBH-875 | |
| FAN-600-2 | 2 | 600 | 6.50 | 5.00 | 0.81 | FBH-750 | |
| FAN-600-2 1/2 | 2-1/2 | 600 | 7.50 | 5.88 | 0.94 | FBH-875 | |
| FAN-600-3 | 3 | 600 | 8.25 | 6.62 | 0.94 | FBH-875 | |
| FAN-600-3 1/2 | 3-1/2 | 600 | 9.00 | 7.25 | 1.06 | FBH-1000 | |
| FAN-600-4 | 4 | 600 | 10.75 | 8.50 | 1.06 | FBH-1000 | |
| FAN-600-5 | 5 | 600 | 13.00 | 10.50 | 1.18 | FBH-1125 | |
| FAN-600-6 | 6 | 600 | 14.00 | 11.50 | 1.18 | FBH-1125 | |
| FAN-600-8 | 8 | 600 | 16.50 | 13.75 | 1.31 | FBH-1250 | |
| FAN-600-10 | 10 | 600 | 20.00 | 17.00 | 1.44 | FBH-1375 | |
| FAN-600-12 | 12 | 600 | 22.00 | 19.25 | 1.44 | FBH-1375 | |
| FAN-600-14 | 14 | 600 | 23.75 | 20.75 | 1.56 | FBH-1500 | |
| FAN-600-16 | 16 | 600 | 27.00 | 23.75 | 1.68 | FBH-1625 | |
| FAN-600-18 | 18 | 600 | 29.25 | 25.75 | 1.81 | FBH-1750 | |
| FAN-600-20 | 20 | 600 | 32.00 | 28.50 | 1.81 | FBH-1750 | |
| FAN-600-22 | 22 | 600 | 34.25 | 30.63 | 1.81 | FBH-1750 | |
| FAN-600-24 | 24 | 600 | 37.00 | 33.00 | 2.06 | FBH-2000 | |
| FAN-600-26A | 26 | 600 | 40.00 | 36.00 | 2.06 | FBH-2000 | |
| FAN-600-26B | 26 | 600 | 35.00 | 31.75 | 1.81 | FBH-1750 | |
| FAN-600-28A | 28 | 600 | 42.25 | 38.00 | 2.18 | FBH-2125 | |
| FAN-600-28B | 28 | 600 | 37.50 | 34.00 | 1.94 | FBH-1875 | |
| FAN-600-30A | 30 | 600 | 44.50 | 40.25 | 2.18 | FBH-2125 | |
| FAN-600-30B | 30 | 600 | 40.25 | 36.50 | 2.06 | FBH-2000 | |
| FAN-600-32A | 32 | 600 | 47.00 | 42.50 | 2.44 | FBH-2375 | |
| FAN-600-32B | 32 | 600 | 42.75 | 38.75 | 2.18 | FBH-2125 | |
| FAN-600-34A | 34 | 600 | 49.00 | 44.50 | 2.44 | FBH-2375 | |
| FAN-600-34B | 34 | 600 | 45.75 | 41.50 | 2.44 | FBH-2375 | |
| FAN-600-36A | 36 | 600 | 51.75 | 47.00 | 2.68 | FBH-2625 | |
| FAN-600-36B | 36 | 600 | 47.75 | 43.50 | 2.44 | FBH-2375 | |
| FAN-600-38A | 38 | 600 | 50.00 | 45.75 | 2.44 | FBH-2375 | |
| FAN-600-38B | 38 | 600 | 50.00 | 45.75 | 2.44 | FBH-2375 | |
| FAN-600-40A | 40 | 600 | 52.00 | 47.75 | 2.44 | FBH-2375 | |
| FAN-600-40B | 40 | 600 | 52.00 | 47.75 | 2.44 | FBH-2375 | |
| FAN-600-42A | 42 | 600 | 55.25 | 50.50 | 2.68 | FBH-2625 | |
| FAN-600-42B | 42 | 600 | 55.25 | 50.50 | 2.68 | FBH-2625 | |
| FAN-600-44A | 44 | 600 | 57.25 | 52.50 | 2.68 | FBH-2625 | |
| FAN-600-44B | 44 | 600 | 57.25 | 52.50 | 2.68 | FBH-2625 | |
| FAN-600-46A | 46 | 600 | 59.50 | 54.75 | 2.68 | FBH-2625 | |
| FAN-600-46B | 46 | 600 | 59.50 | 54.75 | 2.68 | FBH-2625 | |
| FAN-900-1/2 | 1/2 | 900 | 4.75 | 3.25 | 0.94 | FBH-875 | |
| FAN-900-3/4 | 3/4 | 900 | 5.12 | 3.50 | 0.94 | FBH-875 | |
| FAN-900-1 | 1 | 900 | 5.88 | 4.00 | 1.06 | FBH-1000 | |
| FAN-900-1 1/4 | 1-1/4 | 900 | 6.25 | 4.38 | 1.06 | FBH-1000 | |
| FAN-900-1 1/2 | 1-1/2 | 900 | 7.00 | 4.88 | 1.19 | FBH-1125 | |
| FAN-900-2 | 2 | 900 | 8.50 | 6.50 | 1.06 | FBH-1000 | |
| FAN-900-2 1/2 | 2-1/2 | 900 | 9.62 | 7.50 | 1.19 | FBH-1125 | |
| FAN-900-3 | 3 | 900 | 9.50 | 7.50 | 1.06 | FBH-1000 | |
| FAN-900-4 | 4 | 900 | 11.50 | 9.25 | 1.31 | FBH-1250 | |
| FAN-900-5 | 5 | 900 | 13.75 | 11.00 | 1.44 | FBH-1375 | |
| FAN-900-6 | 6 | 900 | 15.00 | 12.50 | 1.31 | FBH-1250 | |
| FAN-900-8 | 8 | 900 | 18.50 | 15.50 | 1.56 | FBH-1500 | |
| FAN-900-10 | 10 | 900 | 21.50 | 18.50 | 1.56 | FBH-1500 | |
| FAN-900-12 | 12 | 900 | 24.00 | 21.00 | 1.56 | FBH-1500 | |
| FAN-900-14 | 14 | 900 | 25.25 | 22.00 | 1.69 | FBH-1625 | |
| FAN-900-16 | 16 | 900 | 27.75 | 24.25 | 1.81 | FBH-1750 | |
| FAN-900-18 | 18 | 900 | 31.00 | 27.00 | 2.06 | FBH-2000 | |
| FAN-900-20 | 20 | 900 | 33.75 | 29.50 | 2.19 | FBH-2125 | |
| FAN-900-24 | 24 | 900 | 41.00 | 35.50 | 2.69 | FBH-2625 | |
| FAN-900-26A | 26 | 900 | 42.75 | 37.50 | 2.94 | FBH-2875 | |
| FAN-900-26B | 26 | 900 | 40.25 | 35.50 | 2.68 | FBH-2625 | |
| FAN-900-28A | 28 | 900 | 46.00 | 40.25 | 3.18 | - | |
| FAN-900-28B | 28 | 900 | 43.50 | 38.25 | 2.94 | FBH-2875 | |
| FAN-900-30A | 30 | 900 | 48.50 | 42.75 | 3.18 | - | |
| FAN-900-30B | 30 | 900 | 46.50 | 40.75 | 3.18 | - | |
| FAN-900-32A | 32 | 900 | 51.75 | 45.50 | 3.44 | - | |
| FAN-900-32B | 32 | 900 | 48.75 | 43.00 | 3.18 | - | |
| FAN-900-34A | 34 | 900 | 55.00 | 48.25 | 3.68 | - | |
| FAN-900-34B | 34 | 900 | 51.75 | 45.50 | 3.44 | - | |
| FAN-900-36A | 36 | 900 | 57.50 | 50.75 | 3.68 | - | |
| FAN-900-36B | 36 | 900 | 53.00 | 47.25 | 3.18 | - | |
| FAN-900-38A | 38 | 900 | 57.50 | 50.75 | 3.68 | - | |
| FAN-900-38B | 38 | 900 | 57.50 | 50.75 | 3.68 | - | |
| FAN-900-40A | 40 | 900 | 59.50 | 52.75 | 3.68 | - | |
| FAN-900-40B | 40 | 900 | 59.50 | 52.75 | 3.68 | - | |
| FAN-1500-1/2 | 1/2 | 1500 | 4.75 | 3.25 | 0.94 | FBH-875 | |
| FAN-1500-3/4 | 3/4 | 1500 | 5.12 | 3.50 | 0.94 | FBH-875 | |
| FAN-1500-1 | 1 | 1500 | 5.88 | 4.00 | 1.06 | FBH-1000 | |
| FAN-1500-1 1/4 | 1-1/4 | 1500 | 6.25 | 4.38 | 1.06 | FBH-1000 | |
| FAN-1500-1 1/2 | 1-1/2 | 1500 | 7.00 | 4.88 | 1.19 | FBH-1125 | |
| FAN-1500-2 | 2 | 1500 | 8.50 | 6.50 | 1.06 | FBH-1000 | |
| FAN-1500-2 1/2 | 2-1/2 | 1500 | 9.62 | 7.50 | 1.19 | FBH-1125 | |
| FAN-1500-3 | 3 | 1500 | 10.50 | 8.00 | 1.31 | FBH-1250 | |
| FAN-1500-4 | 4 | 1500 | 12.25 | 9.50 | 1.44 | FBH-1375 | |
| FAN-1500-5 | 5 | 1500 | 14.75 | 11.50 | 1.69 | FBH-1625 | |
| FAN-1500-6 | 6 | 1500 | 15.50 | 12.50 | 1.56 | FBH-1500 | |
| FAN-1500-8 | 8 | 1500 | 19.00 | 15.50 | 1.81 | FBH-1750 | |
| FAN-1500-10 | 10 | 1500 | 23.00 | 19.00 | 2.06 | FBH-2000 | |
| FAN-1500-12 | 12 | 1500 | 26.50 | 22.50 | 2.19 | FBH-2125 | |
| FAN-1500-14 | 14 | 1500 | 29.50 | 25.00 | 2.44 | FBH-2375 | |
| FAN-1500-16 | 16 | 1500 | 32.50 | 27.75 | 2.69 | FBH-2625 | |
| FAN-1500-18 | 18 | 1500 | 36.00 | 30.50 | 2.94 | FBH-2875 | |
| FAN-1500-20 | 20 | 1500 | 38.75 | 32.75 | 3.19 | - | |
| FAN-1500-24 | 24 | 1500 | 46.00 | 39.00 | 3.69 | - | |
| FAN-2500-1/2 | 1/2 | 2500 | 5.25 | 3.50 | 0.94 | FBH-875 | |
| FAN-2500-3/4 | 3/4 | 2500 | 5.50 | 3.75 | 0.94 | FBH-875 | |
| FAN-2500-1 | 1 | 2500 | 6.25 | 4.25 | 1.06 | FBH-1000 | |
| FAN-2500-1 1/4 | 1-1/4 | 2500 | 7.25 | 5.13 | 1.19 | FBH-1125 | |
| FAN-2500-1 1/2 | 1-1/2 | 2500 | 8.00 | 5.75 | 1.31 | FBH-1250 | |
| FAN-2500-2 | 2 | 2500 | 9.25 | 6.75 | 1.19 | FBH-1125 | |
| FAN-2500-2 1/2 | 2-1/2 | 2500 | 10.50 | 7.75 | 1.31 | FBH-1250 | |
| FAN-2500-3 | 3 | 2500 | 12.00 | 9.00 | 1.44 | FBH-1375 | |
| FAN-2500-4 | 4 | 2500 | 14.00 | 10.75 | 1.69 | FBH-1625 | |
| FAN-2500-5 | 5 | 2500 | 16.50 | 12.75 | 1.94 | FBH-1875 | |
| FAN-2500-6 | 6 | 2500 | 19.00 | 14.50 | 2.19 | FBH-2125 | |
| FAN-2500-8 | 8 | 2500 | 21.75 | 17.25 | 2.19 | FBH-2125 | |
| FAN-2500-10 | 10 | 2500 | 26.50 | 21.25 | 2.69 | FBH-2625 | |
| FAN-2500-12 | 12 | 2500 | 30.00 | 24.38 | 2.94 | FBH-2875 | |
| FAN-75-26 | 26 | 75 | 30.00 | 28.50 | 0.81 | FBH-750 | |
| FAN-75-28 | 28 | 75 | 32.00 | 30.50 | 0.81 | FBH-750 | |
| FAN-75-30 | 30 | 75 | 34.00 | 32.50 | 0.81 | FBH-750 | |
| FAN-75-32 | 32 | 75 | 36.00 | 34.50 | 0.81 | FBH-750 | |
| FAN-75-34 | 34 | 75 | 38.00 | 36.50 | 0.81 | FBH-750 | |
| FAN-75-36 | 36 | 75 | 40.69 | 39.06 | 0.94 | FBH-875 | |
| FAN-75-38 | 38 | 75 | 42.69 | 41.06 | 0.94 | FBH-875 | |
| FAN-75-40 | 40 | 75 | 44.69 | 43.06 | 0.94 | FBH-875 | |
| FAN-75-42 | 42 | 75 | 46.69 | 45.06 | 0.94 | FBH-875 | |
| FAN-75-44 | 44 | 75 | 49.25 | 47.38 | 1.06 | FBH-1000 | |
| FAN-75-46 | 46 | 75 | 51.25 | 49.38 | 1.06 | FBH-1000 | |
| FAN-75-48 | 48 | 75 | 53.25 | 51.38 | 1.06 | FBH-1000 | |
| FAN-75-50 | 50 | 75 | 55.25 | 53.38 | 1.06 | FBH-1000 | |
| FAN-75-52 | 52 | 75 | 57.38 | 55.50 | 1.06 | FBH-1000 | |
| FAN-75-54 | 54 | 75 | 59.38 | 57.50 | 1.06 | FBH-1000 | |
